Sentir Video

For Commercial, Industrial and Government Applications

Sentir Video is Iveda’s video surveillance solution for a variety of applications. Serving our customers for almost two decades has allowed us to validate the best in video surveillance technologies and methodologies, including IP network cameras, network video recorders (NVR), video management system (VMS) camera management software (CMS), wireless systems, and other components necessary to deploy a scalable, efficient, and effective video surveillance system. Iveda designs and delivers highly secure turnkey video surveillance systems featuring our ZEE IP Cameras, Sentir NVRs, Sentir VMS, and Sentir CMS.

The video surveillance system includes interoperability among devices, a robust data management system, and top-line networking capabilities. Sentir Video is an all-inclusive turn-key system that combines all the elements necessary for optimal monitoring, detection, and communication.

Most importantly, Sentir Video is compatible with IvedaAI intelligent video search technology, providing intelligence to normally passive cameras.

Our array of cameras can be tailored to fit your needs, whether they are indoor, outdoor, mobile, or meant to monitor thermal signatures.

Sentir NVR is optimized to store data efficiently and provides easy and quick access and transport of recorded images. Once deployed, video access is easily navigable via a user interface.

The applications for Sentir Video are limitless from government, industrial, and commercial industries, promoting safety, security, and operational efficiencies.

Iveda’s extensive line of ZEE IP cameras is robust and comes with 3-year warranty. Whatever your application is, we can find the right cameras to fit your needs. We have indoor, outdoor, fixed, PTZ, bullet, dome and specialized cameras. ZEE cameras are relatively inexpensive to fit the budget of small businesses or schools. ZEE cameras are enterprise-grade, ideal for commercial, enterprise, and government use.

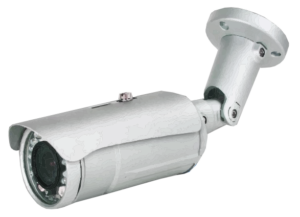

Bullet Cameras

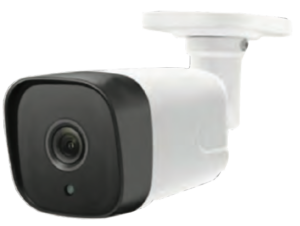

Z-71211P

2MP Bullet Camera

2MP @ 25fps Resolution
H.265 Bandwidth & Storage Optimization
H.265 / H.264 / MJPEG Video Streams
15M IR Illumination
Digital WDR
ONVIF Profile S Compliant
IP66 Weather Rating
Micro SD Storage

Z-71412

4MP Bullet Camera

4M H.265 Outdoor IR Bullet
Motorized lens 2.8-12mm
15 fps at 4M (2592 x 1520)
Digital WDR
IR 100ft
Easy Focus
SD card
PoE
IP66

Z-7122H

2MP Extreme
Bullet Camera

2M H.265 Outdoor IR Bullet
Motorized lens 2.8-12mm,
P-iris lens, 30 fps at 2M (1920 x 1080)
WDR, Two way audio
Adaptive IR 75ft
Easy Focus, PoE
IP66, -22°F to 122°F
Built in Heater, IK10

Z-71412H

4MP Extreme
Bullet Camera

4M H.265 Outdoor IR Bullet
Motorized lens 2.8-12mm
P-iris lens
30 fps at 4M (2592 x 1520)
WDR
Two way audio Adaptive IR 75ft
Easy Focus, PoE, IP66, -22°F to 122°F, Built in Heater, IK10

Z-71812H

8MP Extreme
Bullet Camera

8M(4k2k) H.265 Outdoor IR Bullet
SonyIMS274 chipset Motorized lens 3-9mm
P-iris lens, 30 fps at 8M (3840 x 2160)
True WDR at 120Db
Two way audio, Adaptive IR at 160ft, Easy Focus
PoE+, IP67
-40°C -60°C Extreme Conditions
Built in Heater
IK10, Aluminum housing

Z-71512P

5MP Low Light
Bullet Camera

Starvis Chipset
Bullet with 2.8 to 12mm motorized zoom Lens

Z-71812

8MP Low Light
Bullet Camera

Starvis Chipset
Bullet with 2.8 to 12mm motorized zoom Lens

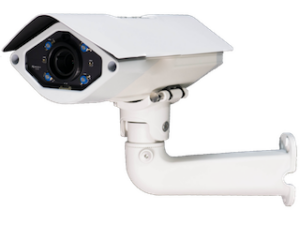

Z-7122H

2MP Bullet Camera

60fps
H.265 Bandwidth & Storage Optimization
H.265 / H.264 / MJPEG Video Streams
60M Adaptive IR Illumination
ONVIF Profile S Compliant
Extreme Temperature to -40° F
PoE+
IP67 Weather Rating

Z-71412H

4MP Bullet Camera

- 4MP @ 25fps Resolution
- H.265 Bandwidth & Storage Optimization
- H.265 / H.264 / MJPEG Video Streams
- TAA & NDAA Compliant
- 30M IR Illumination
- Extreme Temperature to -40° F
IP66 Weather Rating

Dome Cameras

Z-72211

2MP Dome Camera

2M Low Cost Dome with 2.8 mm fixed Lens

Z-71412

4MP Dome Camera

4M H.265 Outdoor IR Dome
Motorized lens 2.8-12mm,
15 fps at 4M (2592 x 1520)
Digital WDR
IR 100ft,
Easy Focus
SD card
PoE
IP66

Z-71412

5MP Mini Dome Camera

Fixed lens 2.8mm
P-iris, 30 fps at 5M (2560 x 1920)
Digital WDR
Two way audio and built in microphone
IR 50ft, SD card, PoE
IP66
-22°F to 122°F
IK10

Z-72412H

4MP Extreme Dome Camera

Motorized lens 2.8-12mm
P-iris lens, 30 fps at 4M (2592 x 1520)
WDR
Two way audio
Adaptive IR 75ft
Easy Focus
PoE
IP66
-22°F to 122°F
Built in Heater
IK10

Z-72812H

8MP Extreme Dome Camera

SonyIMS274 chipset
Motorized lens 3-10.5mm
P-iris lens
30 fps at 8M (3840 x 2160)
True WDR at 120Db
Two way audio
Adaptive IR at 130ft
Easy Focus, PoE+, IP67,
-40°C -60°C Extreme Conditions
Built in Heater, IK10, Aluminum housing

Z-72512P

5MP Low Light
Dome Camera

5M Low Light Starvis Chipset
Dome with 2.8 to 12mm motorized zoom Lens

Z-72812

8MP Low Light
Dome Camera

8mp Low Light Starvis Chipset
2.8 to 12mm motorized zoom Lens

PTZ Cameras

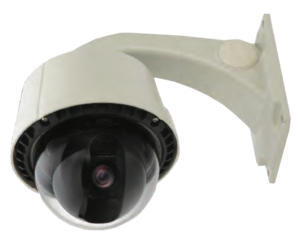

Z-73223

2MP 10X Optical
Zoom Lens

2MP @ 30fps Resolution
H.264 Bandwidth & Storage Optimization
H.264 / MJPEG Video Streams
TAA & NDAA Compliant
ONVIF Profile S Compliant
10x Optical & 32x Digital Zoom
Extreme Temperature to -40° F
IP66 Weather Rating
IK10 Vandal Proof
PTZ Kit Includes 60W PoE+ Injector

Z-73224

2MP 30x Optical
Zoom Lens

2mp (1/3" Chipset)PTZ with 30X Motorized Zoom Lens

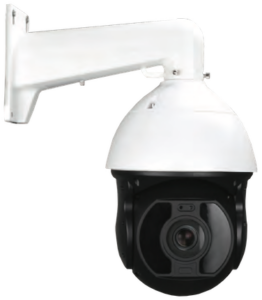

Z-73225

2MP 36x Optical
Zoom Lens

2MP @ 60fps Resolution
H.265 / H.264 / MJPEG Video Streams
400M IR Illumination
TAA & NDAA Compliant
ONVIF Profile S Compliant
36x Optical & 32x Digital Zoom
Extreme Temperature to -58° F
IP66 Weather Rating
IK10 Vandal Proof
PTZ Kit Includes 60W PoE+ Injector

Z-73425

4MP 36x Optical
Zoom Lens

4mp (1/2" chipset)PTZ
36X Motorized Zoom Lens

Z-73314

3MP 30x Optical
Zoom Lens

3M H.264 PTZ Camera
20fps at 3M,
Built in 30x optical lens module
Digital WDR,
Up to 128 preset tours and 4 patrol tours
Built in 4/1 alarm in/out
SD card, POE+

Specialty Cameras

Z-7241A

4MP IR Fixed
Eyeball Camera

1/2.8” progressive scan CMOS
Max. 4MP(2592×1520)
@25/30fps resolution
WDR, 3D DNR, ROI, HLC,
BLC, Defog, IVS
Support face, human, vehicle detection
Intelligence analysis: Perimeter, Single virtual fence, Double virtual fences, Loiter, Converse, People counting
Smart IR distance up to 30m
Built-in microphone
1/1 channel audio input/output, 1/1 channel alarm input/output
Built-in SD card slot, IP66, PoE

Z-72221

2MP IR
Mobile Dome Camera

2MP @ 25fps Resolution
H.265 Bandwidth & Storage Optimization
H.265 / H.264 / MJPEG Video Streams
TAA & NDAA Compliant
EN50155 Certified
ONVIF Profile S Compliant
IP66 Weather Rating
Micro SD Storage (Optional)

Z-77312130

3MP
License Plate Camera

3MP @ 30fps Resolution
H.264 Bandwidth & Storage Optimization
H.264 / MJPEG Video Streams
Ideal for LPR up to 50 feet
ONVIF Profile S Compliant
Extreme Temperature to -40°F
Intelligent Traffic Mode
Customizable Day & Night Profile
IP66 Weather Rating
IK10 Vandal Proof

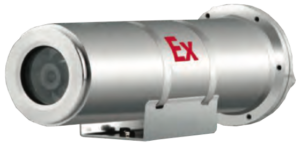

Z-71212E

5MP
Explosion Proof
IP Camera

5MP @ 30fps Resolution
H.265 Bandwidth & Storage Optimization
H.265 / H.264 / MJPEG Video Streams
30M IR Illumination
True WDR
ONVIF rofile S Compliant
TAA & NDAA Compliant
IP66 Weather Rating

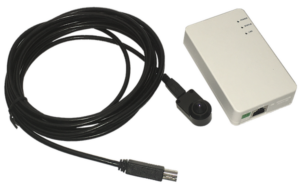

2MP Pinhole Lens
IP Camera

2MP @ 30fps
H.265Bandwidth & Storage Optimization
H.265 / H.264 / MJPEG Video Streams
1M IR Illumination
Small Form Factor

Network Video Recorder (NVR)

Sentir NVR is optimized to store data efficiently and provides easy and quick access and transport of recorded images. Once deployed, video access is easily navigable via a user interface.

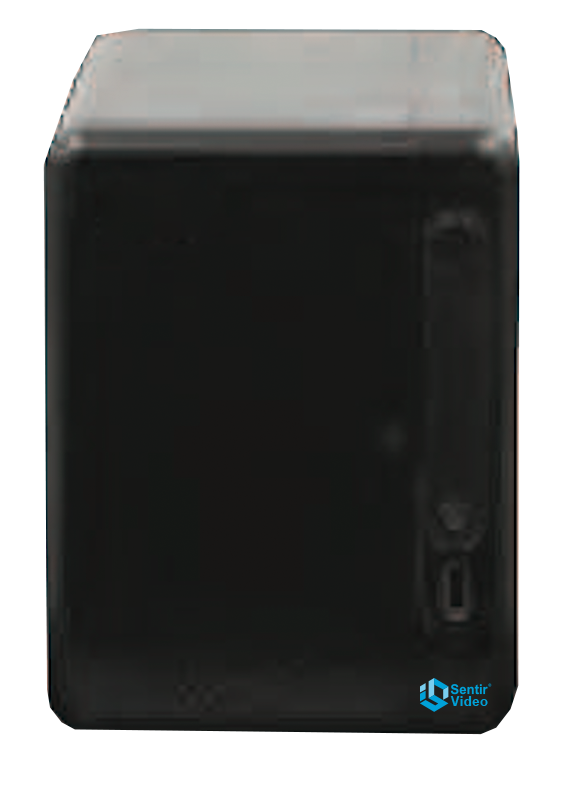

NI-CLU2 / NI-CKU2

NVR Mini 2 Bay NVR

Enterprise class solutions: Powered by Linux
Two or Four Hot Swappable Hard Drive Bays
Up to 12TB per Drive Bay
Camera Licenses Included
Compact Cube Form Factor
Supports up to 4K Cameras
Intuitive Operation
H.265 / H.264 Video Compression Codex Ready
30 Month Video Recovery Warranty When the Hard Drives purchased from Iveda

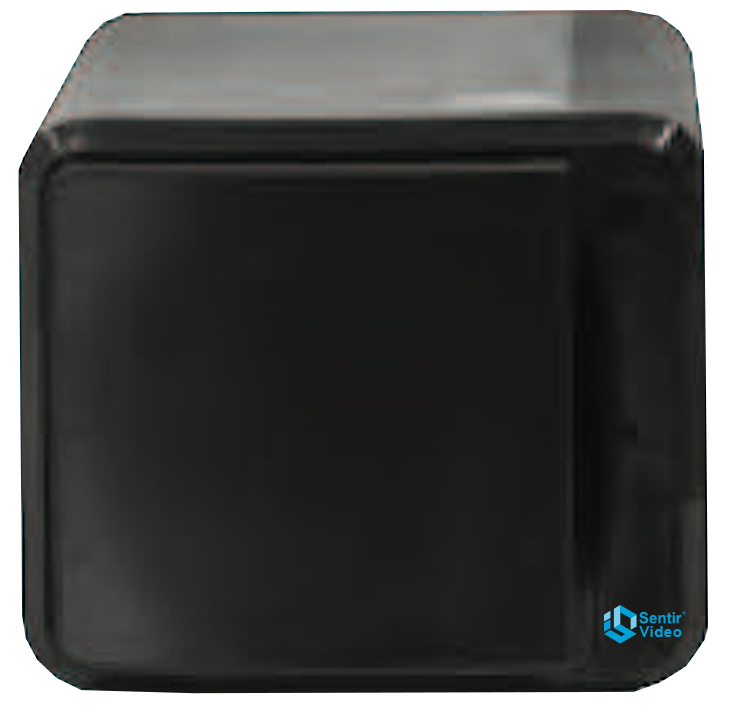

NI-CFU4 / NI-CG4

NVR Mini 4 Bay NVR

Enterprise class solutions: Powered by Linux
Two or Four Hot Swappable Hard Drive Bays
Up to 12TB per Drive Bay
Camera Licenses Included
Compact Cube Form Factor
Supports up to 4K Cameras
Intuitive Operation
H.265 / H.264 Video Compression Codex Ready
30 Month Video Recovery Warranty When the Hard Drives purchased from Iveda

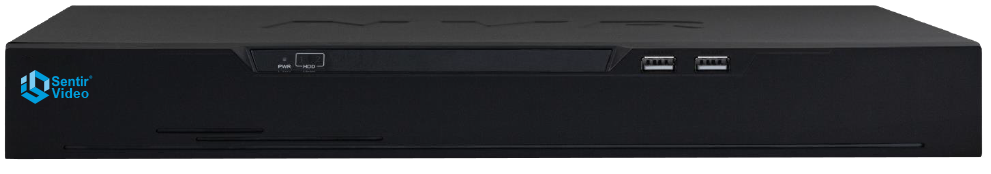

NL-N0404 / NL-N0808 / NL-N1616

Standalone NVR

Embedded Linux – safer solution against PC crashes and virus attacks
One-click setup for more than 100 brands of IP cameras
Free from router settings for web/mobile viewin
RAID 0,1 support
Support Camera motion event
Support record H.264, H.265 format
NTP server synchronization
Support 100 up brands of IP cameras and thousands of integrated camera models
QR code

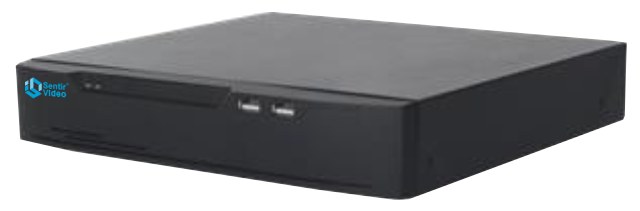

NL-N0104

Standalone NVR

Up to 4ch IP cameras access
Up to 8MP resolution for live view and recording
Intelligent analysis by NVR: Intrusion (support the accurate detection of vehicle and human)
1 SATA hard disk up to 12TB
1 RJ45 10/100Mbps network interface
4ch POE ports
Smart search & playback
Support cloud upgrade

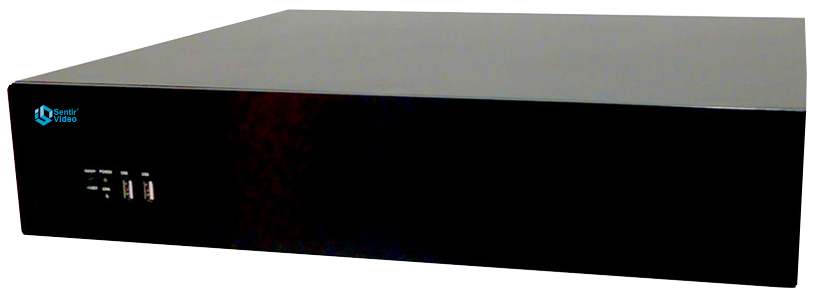

NL-N1600

2U NVR

Maximum Number of Licenses: 16
Form Factor: 2U
Video Output: HDMI & VGA
Throughput: 200mbps
Hard Drive Bays: 8 x 3.5 SATA
3 (Internal Hard Drive Bays)
Drive Type: Seagate Skyhawk Surveillance
4tb, 6tb, 8tb, 10tb, 14tb
Max Internal Storage: 112tb per unit
RAID Level: 0, 1, 5, 10 (RAID will Decrease Maximum Throughput)

NL-N3200

2U NVR

Maximum Number of Licenses: 16
Form Factor: 2U
Video Output: HDMI & VGA
Throughput: 200mbps
Hard Drive Bays: 8 x 3.5 SATA
3 (Internal Hard Drive Bays)
Drive Type: Seagate Skyhawk Surveillance
4tb, 6tb, 8tb, 10tb, 14tb
Max Internal Storage: 112tb per unit

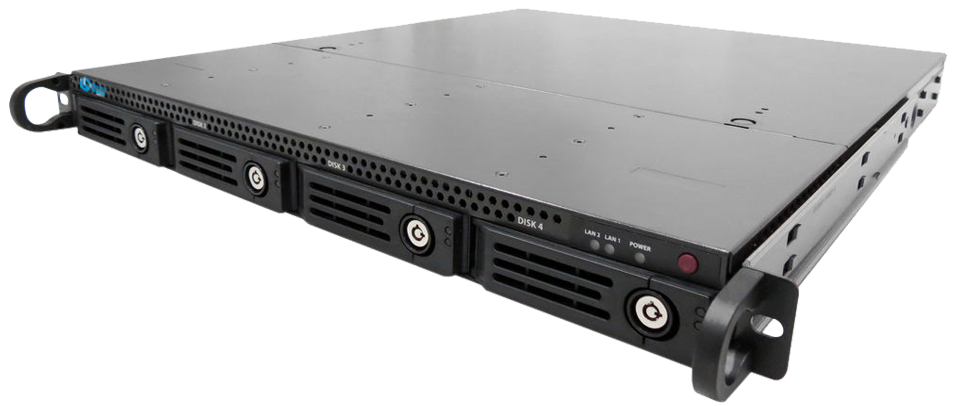

NR-BHR48T-3

Enterprise Rack-mount 1U NVR

Enterprise Class Solutions: Powered By Linux
Open Platform For Single Or Multi-Site Capability
Up To 40 TB Of Hard Drive Storage
Up To 64 Camera Channels Per Unit; One Time Cost For Camera Licensing
Customizable 360° Camera Dewarping & Calibration Tool
Individual Camera Retention & Load Balancing
Advanced Analytics, Extended Storage, & Metadata
H.265 / H.264 Video Compression Codex Ready
Automatic Mirrored Storage Failover
LPR Integrated
Advanced Analytics & Point Of Sale (POS) Capability

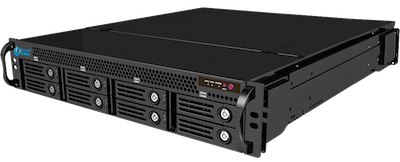

NR-BJS410T-3

Enterprise Rack-mount 2U NVR

Enterprise Class Solutions: Powered By Linux
Open Platform For Single Or Multi-Site Capability
Up To 80 TB Of Hard Drive Storage
Up To 128 Camera Channels Per Unit; One Time Cost For Camera Licensing
Customizable 360° Camera Dewarping & Calibration Tool
Individual Camera Retention & Load Balancing
Advanced Analytics, Extended Storage, & Metadata
H.265 / H.264 Video Compression Codex Ready
Automatic Mirrored Storage Failover
LPR Integrated
Advanced Analytics & Point Of Sale (POS) Capability

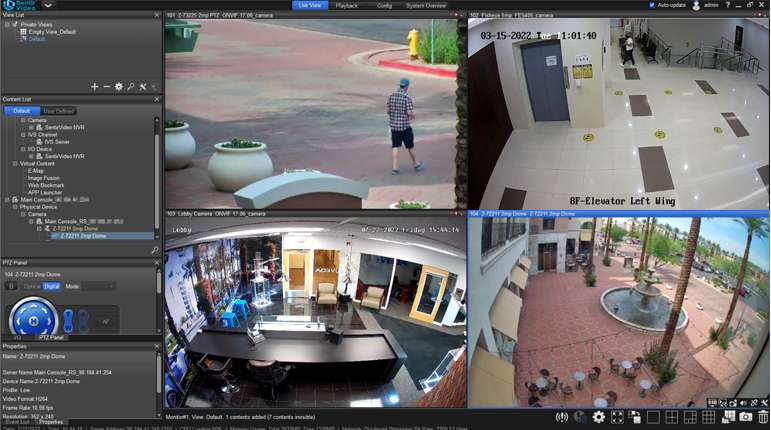

Sentir CMS

Sentir CMS (content management software) is ideal for large-scale and high-level enterprise projects. Sentir CMS provides seamless and fast management of video, audio, and other sensor metrics in an easily navigable environment. Depending on client needs, Sentir CMS can be customized to handle an unlimited number of users, stratified along levels of security clearance, and can provide results to a centralized control room or peripheral devices. It also provides an enhanced alarm management system that reports immediately to designated recipients.

Sentir Video Applications

Building security
Campus security
Hospital patient safety
Fleet management
Factory security and asset management
Retail security
Traffic control and security

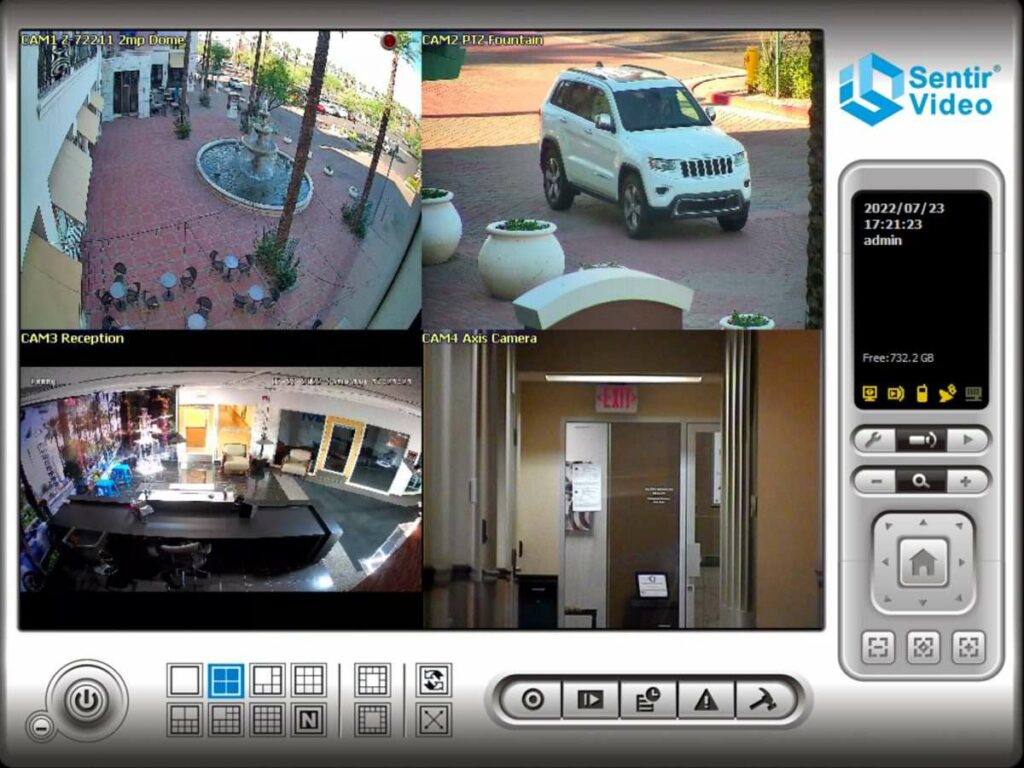

Sentir VMS

Sentir VMS is Iveda’s video management software that can be installed in Windows computers or in the cloud. It has the same functionality as the Linux-based Sentir NVR.
